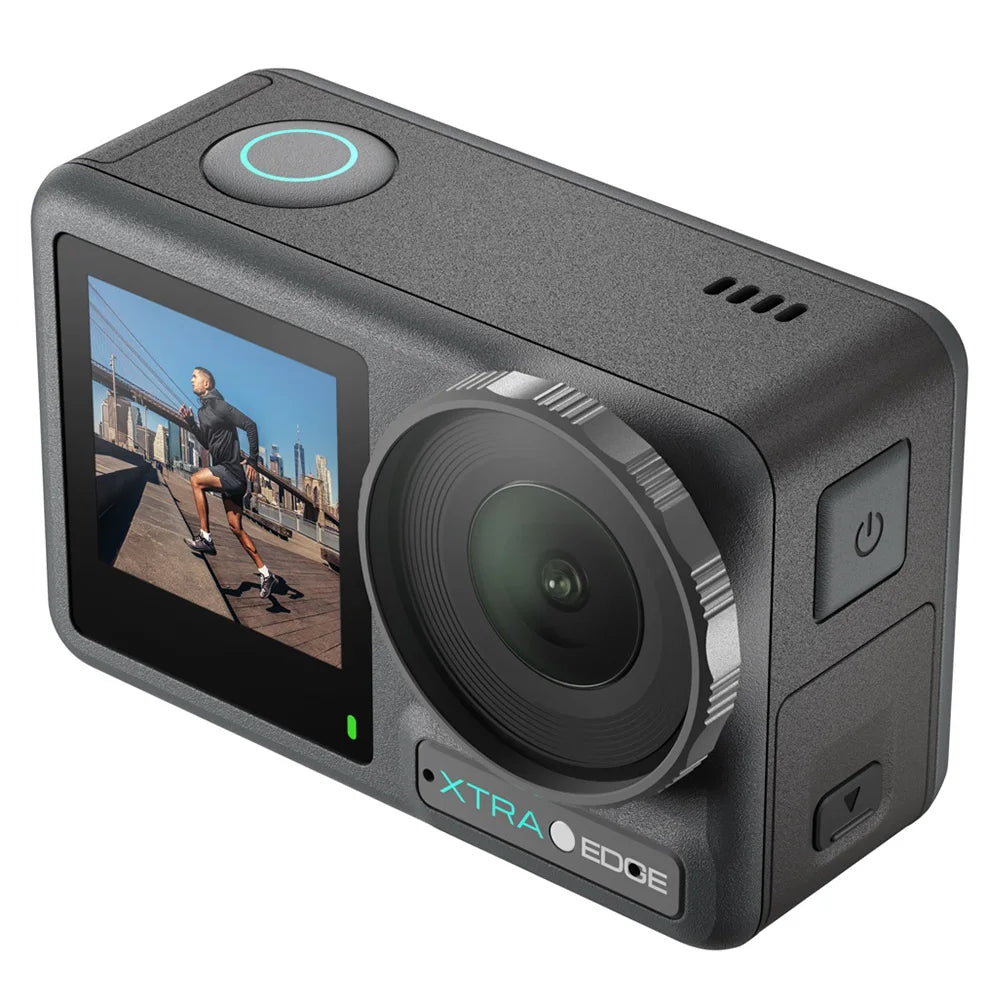

You get professional-grade clarity and versatile framing from day one with the Xtra Edge’s 1/1.3‑inch CMOS sensor, dual touchscreens, and built‑in 16‑meter waterproof housing.
You shoot smooth, gimbal-like video while riding or running using MotionMaster electronic stabilization that preserves your horizon without edge warping.
You record slow-motion highlights in 4K at 120fps or capture ultra-wide shots across a 155° field of view paired with an f/2.8 aperture for low-light performance.

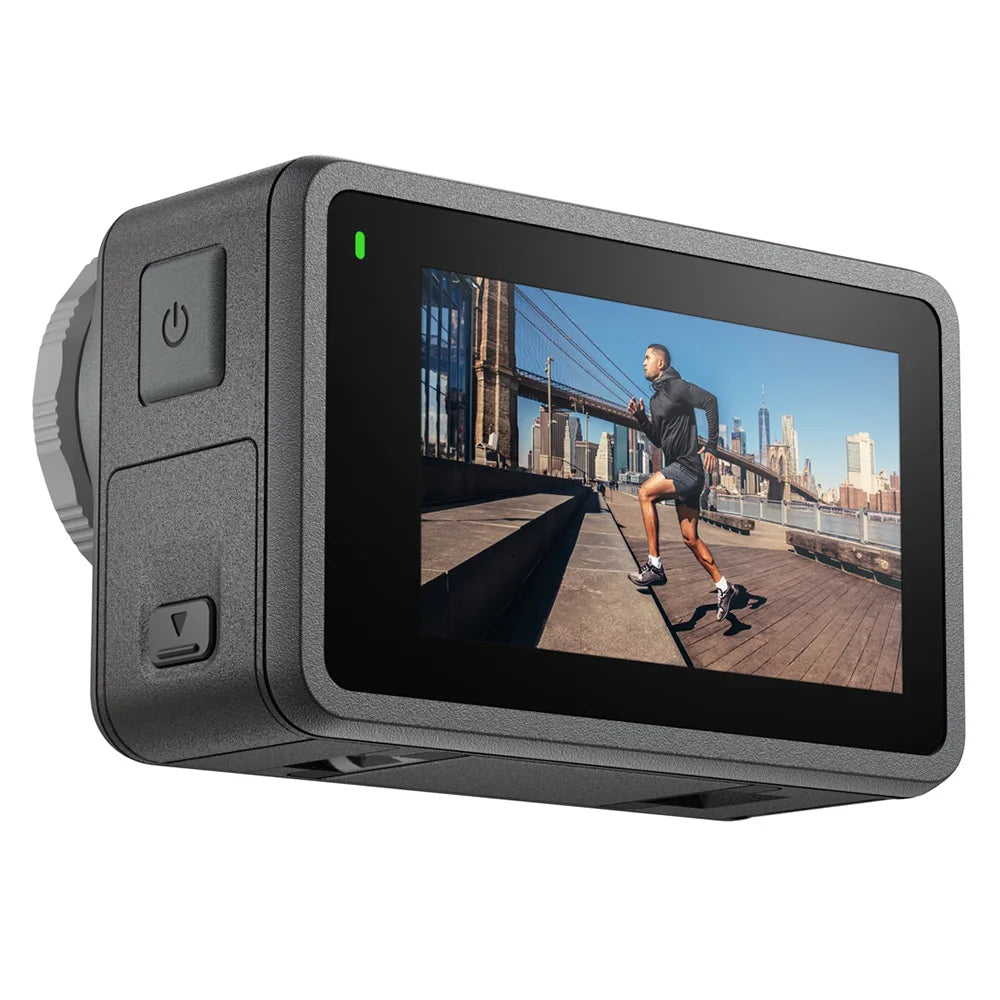

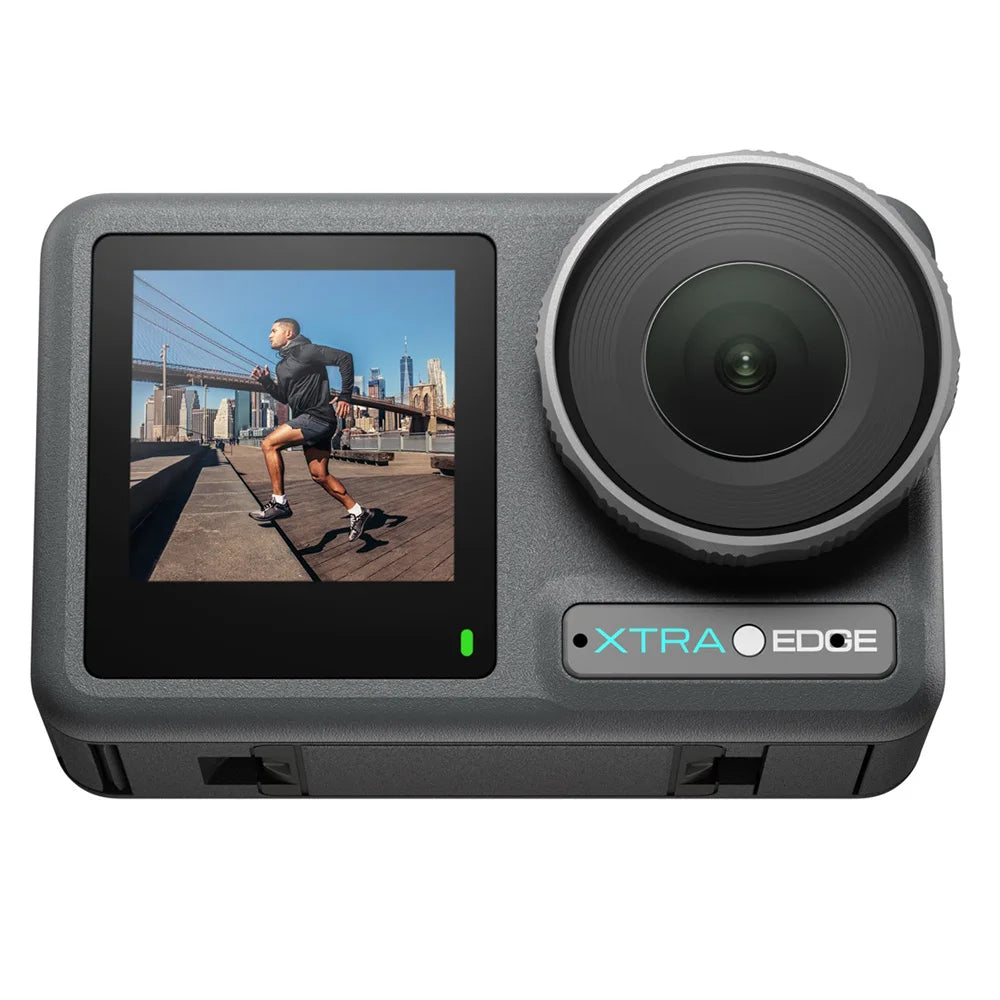

You monitor your angles instantly thanks to a 1.4‑inch front screen and a larger 2.25‑inch rear display, both rated at 750 nits for clear visibility in direct sun.
You reliably power through snow days or winter adventures with the included cold‑resistant 1900 mAh battery, which maintains stable recording down to –20°C.
General
Brand: Xtra Type: Action Camera Model: Edge Color: Black
Specification
Waterproof: 16 m (52 ft) without case 55 m with waterproof case Waterproof Standard: IP68 (GB/T 4208-2017, IEC 60529-2013) Notes: Ensure battery cover and USB-C port are securely closed before use. For high-pressure underwater environments, waterproof case is recommended. Avoid hot springs, corrosive or unknown liquids. Display Front Screen: 1.4-inch, 320 × 320, 323 ppi Rear Screen: 2.25-inch, 360 × 640, 326 ppi Brightness: 750 ± 40 cd/m² Type: Dual touchscreen Camera Image Sensor: 1/1.3-inch CMOS Lens FOV: 155° Aperture: F2.8 Focus Range: 0.4 m – ∞ ISO Range: Photo: 100–12800 Video: 100–12800 Shutter Speed: Photo: 1/8000s – 30s Video: 1/8000s – frame-rate limited Max Photo Resolution: 3648 × 2736 Photo Format: JPEG / RAW Video Recording 4K (4:3): 3840 × 2880 @ 24/25/30/48/50/60fps 4K (16:9): 3840 × 2160 @ 24/25/30/48/50/60/100/120fps 2.7K (4:3): 2688 × 2016 @ 24/25/30/48/50/60fps 2.7K (16:9): 2688 × 1512 @ 24/25/30/48/50/60/100/120fps 1080p (16:9): up to 240fps Slow Motion 4K: 120fps (4×) 2.7K: 120fps (4×) 1080p: up to 240fps (8×) Timelapse Motion Timelapse: 4K / 2.7K / 1080p Speed Options: ×2 / ×5 / ×10 / ×15 / ×30 Static Timelapse: Resolution: 4K / 2.7K / 1080p @ 30fps Interval: 0.5s – 40s Duration: up to ∞ (unlimited modes available) Stabilization MotionMaster MotionMaster+ TiltGuard 360 Lock Notes: Not supported in Static Timelapse & Slow Motion 360 Lock: 16:9 only (1080p / 2.7K ≤60fps) TiltGuard: 16:9 (1080p / 2.7K / 4K ≤60fps) Audio Microphones: 3 Sampling: 48 kHz / 16-bit Format: AAC Storage External: microSD card only (no internal storage) Supported: up to 512GB File System: exFAT Recommended Cards: SanDisk Extreme PRO U3 V30 Kingston CANVAS Go! Plus / React Plus series Lexar Professional 1066x series (up to 512GB) Battery Type: LiPo 1S Capacity: 1900 mAh Energy: 7.36 Wh Voltage: 3.87 V Operating Time: up to 180 min (lab test conditions)
Test Conditions: 1080p/24fps, stabilization off, Wi-Fi off, screen off
Power & Temperature Operating Temperature: -20°C to 45°C Charging Temperature: 5°C to 40°C Connectivity Wi-Fi: 802.11 a/b/g/n/ac Bands: 2.4 GHz 5.1 GHz 5.8 GHz Bluetooth: BLE 5.0 Transmit Power: Wi-Fi: <13–15 dBm (band dependent) Bluetooth: <10 dBm Video Format MP4 (H.264 / HEVC)
Weight & Size
Product Weight: 149g Package Weight: 286g Product Size(L x W x H): 70.5×44.2×32.8mm Package Size(L x W x H): 70×50×30mm

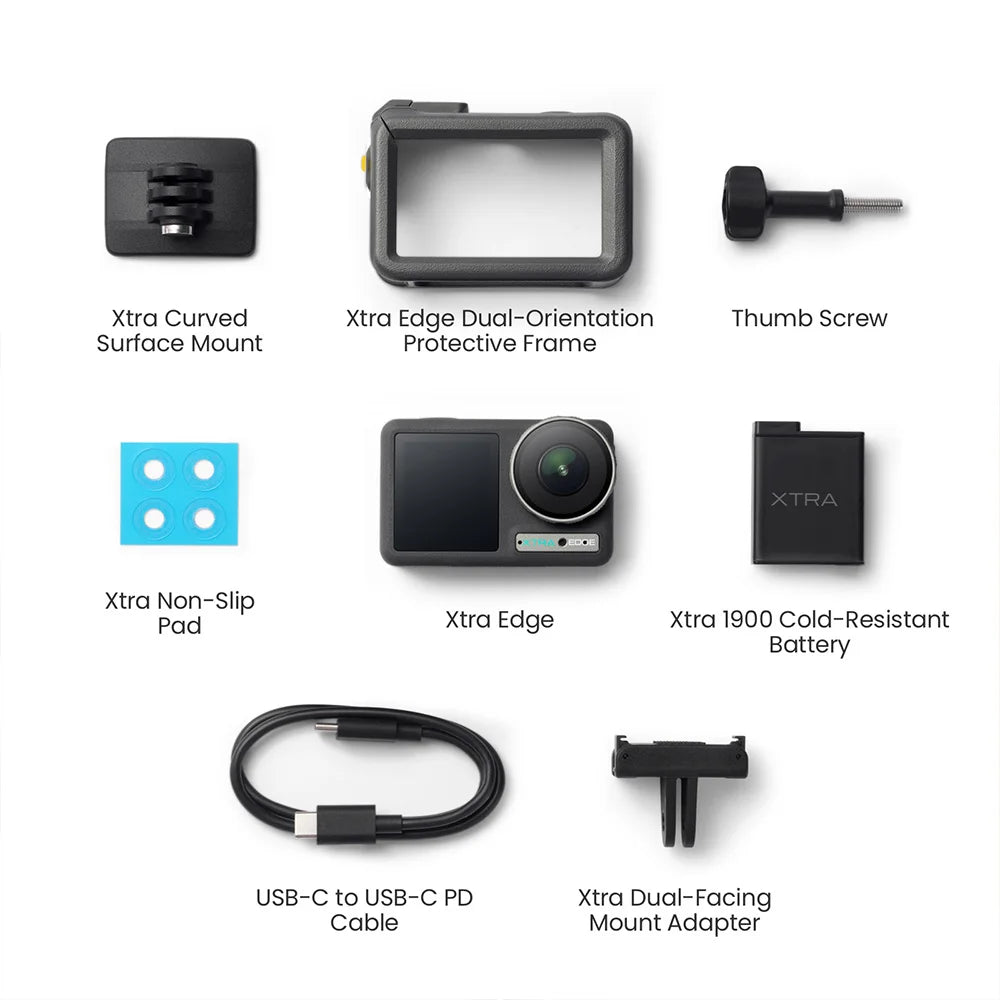

Package Contents
1 x Xtra Edge 1 x Xtra 1900 Cold-Resistant Battery 1 x Xtra Edge Dual-Orientation Protective Frame 1 x Xtra Dual-Facing Mount Adapter 1 x Xtra Curved Surface Mount 1 x Thumb Screw 1 x USB-C to USB-C PD Cable 1 x Xtra Edge Lens Cover (Installed on the camera lens) 1 x Xtra Non-Slip Pad
